Permit sets, construction documents, and rendering.
Permit sets checked against local requirements before they go in, construction documents the framer and the inspector both read the same way, and renderings that settle the design before anything gets drawn twice.

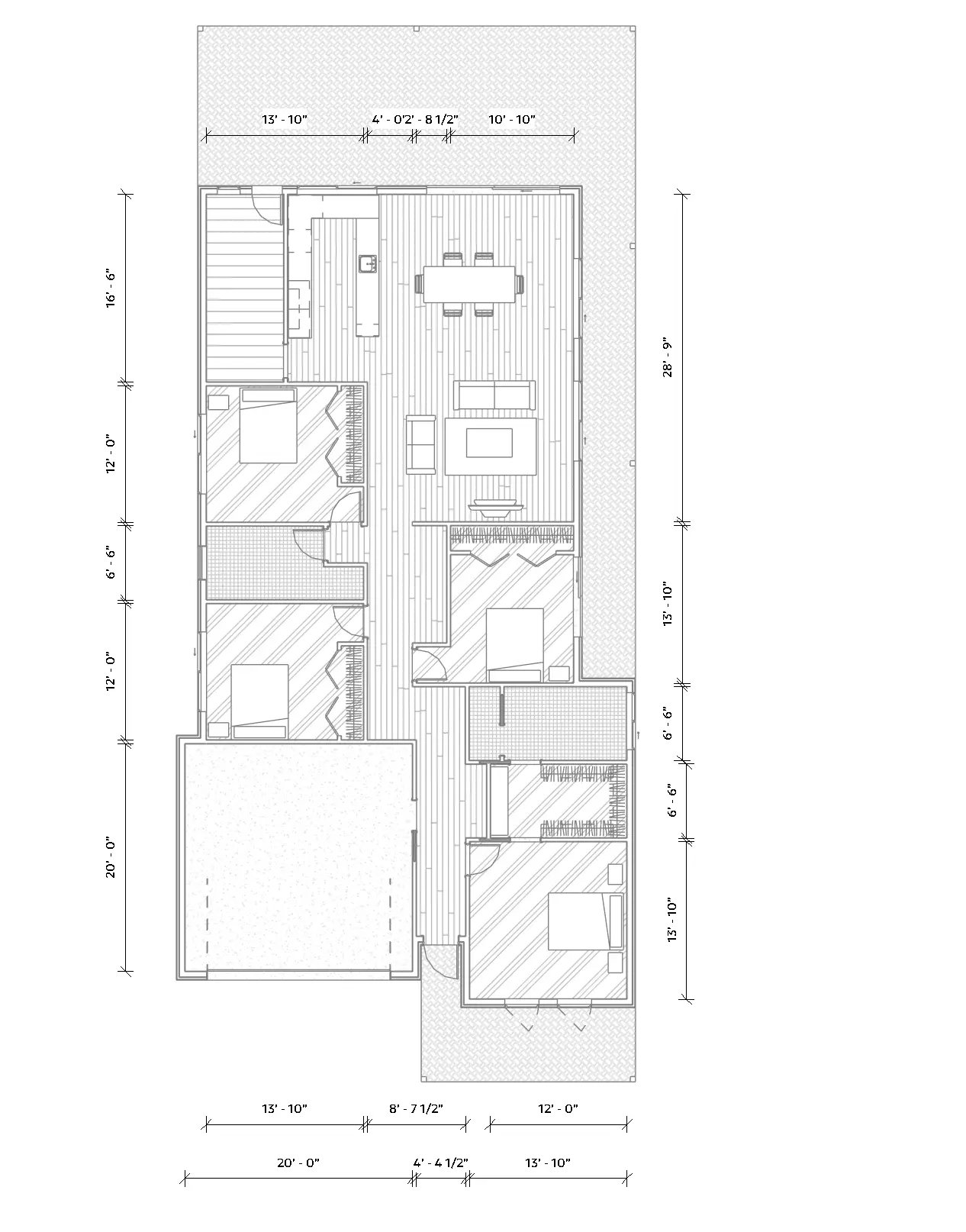

Sets that clear plan review the first time.
We take your design intent or an existing structure to a permit-ready set, checked against the local jurisdiction before it goes in rather than after it comes back.
- Floor plans, elevations, sections
- Floors, walls and roof assembly details
- Door, window, and finish schedules
- Jurisdiction plan-check review
- Scale
- 1/4" = 1'-0"
- Sheet
- A-101
- Issued
- 2026

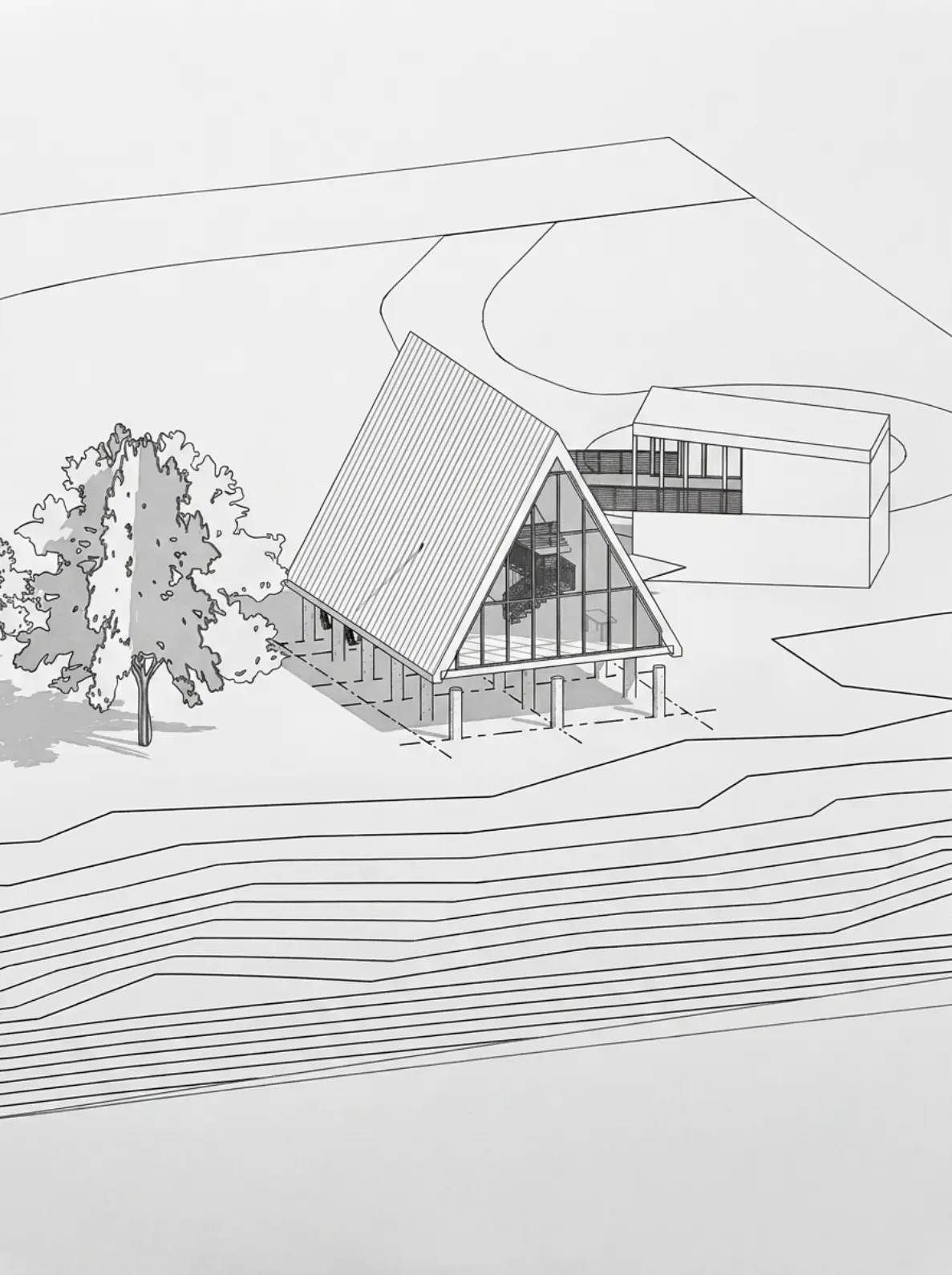

Ground-up documentation, from footing to ridge.
Full construction documents for new residential and light commercial builds, coordinated against the lot survey and/or drawn so the framer and the inspector read the same thing.
We work from your engineer’s design, a hand-drawn sketch, or a plan book set that needs to be converted into a detailed set of drawings.
- Foundation and framing plans
- Build ready documentation with detailed callouts
- Structural coordination
- Site plan and setbacks
- Scale
- 1/4" = 1'-0"
- Sheet
- A-201
- Issued
- 2026
Something to show the client before it is built.
Measured perspectives and material studies built from the same model as the construction set, so what the client approves is what gets drawn.
Useful for design review boards, HOA submittals, and pre-sale marketing on spec builds.
- Exterior perspectives
- Material and finish studies
- Massing and siting views
- Print and web resolution exports
- Scale
- NTS
- Sheet
- A-901
- Issued
- 2026
